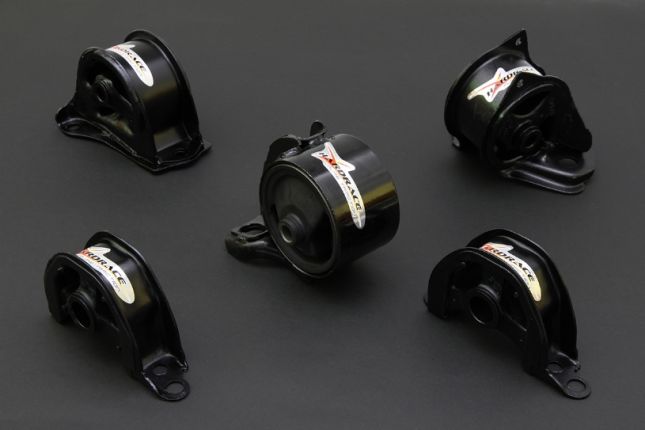

Hardrace Harden Engine Mount Set – Honda Civic/Crx/Integra (5826)

Product Overview

Golden-era Honda chassis are celebrated for their high-revving nature, but age takes a massive toll on factory fluid-filled or soft rubber isolators. Over decades of heat cycles and continuous mechanical strain, original equipment mounts sag, crack, and tear. This progressive failure allows the powertrain assembly to sway violently during rapid throttle changes, causing severe wheel hop, delayed throttle reaction, and vague shift engagement.

The Hardrace Harden Engine Mount Set – Honda Civic/Crx/Integra (5826) is a complete, structural 5-piece stabilization kit engineered to firmly anchor your engine and transmission. Available at JDMaster.net, this premium performance upgrade exchanges highly flexible original components for high-durometer, solid vulcanized hardened rubber. It provides an uncompromised mechanical link between the powertrain and chassis frame rails—drastically sharpening power delivery without generating the brutal, cabin-rattling harshness of track-only solid polyurethane or aluminum variants.

Key Features & Benefits

• Arrests Rotational Powertrain Twist: Severely limits engine pitching along the horizontal axis, transforming latent rotational mass into instantaneous front wheel acceleration.

• Signature High-Density Harden Rubber: Formulated from a non-porous, specialized anti-crack elastomeric compound that delivers exceptional load-bearing and shear resistance.

• Comprehensive 5-Piece Complete Kit: Provides a total mechanical overhaul across your engine bay, including the primary left-hand side, right-hand side, rear firewall mount, and both lower front torque dampers.

• Maintains Precise Shift Geometry: Stabilizes the transmission casing casing relative to the vehicle body, protecting shift rod linkages from binding to eliminate missed gears at high RPM.

• Optimized Street-Performance Compliance: Specifically tuned to deliver precise track day responsiveness while retaining enough dampening elasticity to control excessive noise, vibration, and harshness (NVH).

• Direct Bolt-On OEM Integration: Molded to precise factory CAD measurements to slip directly into original chassis perches utilizing standard mounting hardware.

Technical Specifications

Applications

This specific Part Number 5826 kit features specialized casting patterns tailored specifically for manual chassis variations running the popular 2-bolt timing-side cast iron or steel left-hand bracket profile:

Chassis Fitment

• Honda Civic 5th Gen (1992–1995 EG / EH / EJ Manual Models)

• Honda Civic Del Sol (1993–1997 EG1 / EG2 Manual Models)

• Honda Integra 3rd Gen (1994–2001 DC2 / DB7 / DB8 Manual Models – Note: Always verify timing side configuration, as some later models use a 3-bolt bracket pattern)

Engine Application Note

Designed to bolt natively onto factory D-Series (SOHC) or B-Series (DOHC VTEC) engine setups using a standard 2-bolt timing cover engine block bracket interface. Perfect for restoring standard geometry or securing clean B16A, B16A2, or B18C performance engine swaps into classic EG and DC2 chassis bays.

The Mechanical Advantage: Eradicating Front Axle Wheel Hop

When a modified B or D-series engine enters VTEC or launches from a standstill, the immediate spike in torque forces the entire engine block to pivot violently backward inside the bay. If the chassis relies on old, fatigued original rubber mounts, this engine displacement causes severe mechanical compliance. As the motor rocks, it introduces a dynamic pull on the CV axles, shifting weight off the front tires and triggering a repeating cycle of traction loss and recovery known as wheel hop.

Wheel hop is highly destructive, sending intense shockwaves through your differential gears and risking snapped axle shafts.

The Hardrace 5826 5-piece system completely removes this engineering bottleneck. By eliminating the large internal air voids found in stock rubber designs, the high-durometer hardened rubber compound resists deflection under sudden load changes. The engine is firmly captured along its engineered centerline, instantly translating engine rotation into direct forward tire bite. The result is an ultra-connected throttle response, linear mid-corner acceleration, and complete frontend stability under harsh driving pressures.

Professional Engine Support Lift Installation at JDMaster

Get it Fitted by the Specialists: Replacing an entire 5-piece engine mount set is a complex structural task. It requires securely supporting the powertrain weight from beneath or suspending it via a specialized engine hoist while unbolting critical structural subframe links. High-torque chassis fasteners are prone to seizing over time, and improper component alignment during assembly can cause drivetrain binding or extreme cabin vibrations.

Skip the safety hazards and secure a lift appointment at the JDMaster.net workshop. Our factory-trained automotive technicians will safely suspend your engine, inspect your chassis mounting brackets for physical fatigue, press or bolt in the new Hardrace units, and torque all primary hardware to exact factory specifications under real loaded weight distribution.

Warranty

The warranty on Hardrace products depends on the type of product, with a minimum warranty period of 2 years. This warranty does not cover damage caused by a car crash, improper use, negligence or normal wear and tear.
