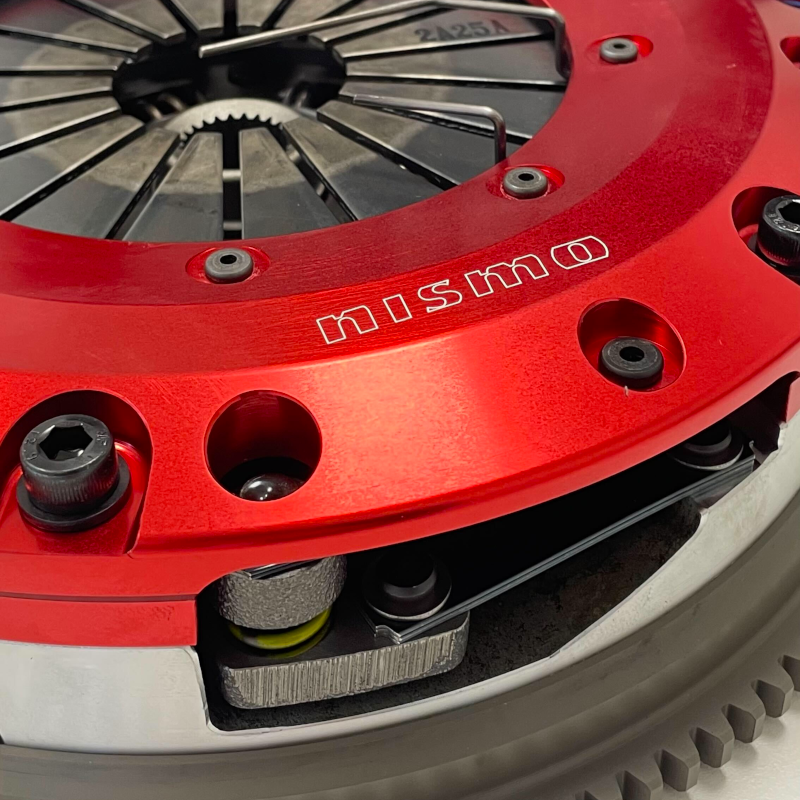

Product: Super Coppermix Twin Plate Competition Model Clutch Kit – BNR34
Part Num: 3002B-RRR47-C
SPECIFICATIONS:
Kit Contents:
– Flywheel bolts
– Release bearing (OEM)
– Sticker
– Two COPPERMIX clutch discs
– Aluminum clutch cover
– Lightweight flywheel
– Aluminum center plate
Damper: Spring
Disc Outer Diameter: 225mm
Allowable torque Nm (kgfm):
– Kinetic friction: 951 (97)
– Static friction: 1618 (165)
Allowable output kW (ps): 574 (780)
Clutch cover:
– Pressure N (kgf): 11278 (1150)
– Type: Pull
Weight:
– Super Coppermix: 17.32
– OEM: 20.7
PRODUCT NOTES:
– Because of the design and manufacturing processes made to create the improved clutch response provided by the sports clutch disc and lightweight flywheel and increased output, it is possible that the transmission or bearings may transmit a rumbling noise, compared to genuine Nissan parts. Transmission or gear noise is particularly likely to occur at idling or when accelerating or decelerating from the area around 2000rpm; however, this has no effect on quality or performance.
– The rattling sound which is characteristic of six-speed manual transmissions, Getrag-equipped vehicles and S15 6-speed manual transmission vehicles, has been proven in actual vehicle testing to be reduced through the use of the G-max.
– Do not use with a big operating cylinder, which may result in a misshift due to insufficient stroke volume.
– Heavy pedal operations will result, due to high pressure settings. Not recommended for general-purpose use.
– To improve the operation of this clutch, please refrain from excessive half-clutch operation (although the clutch does have good half-clutch characteristics).
