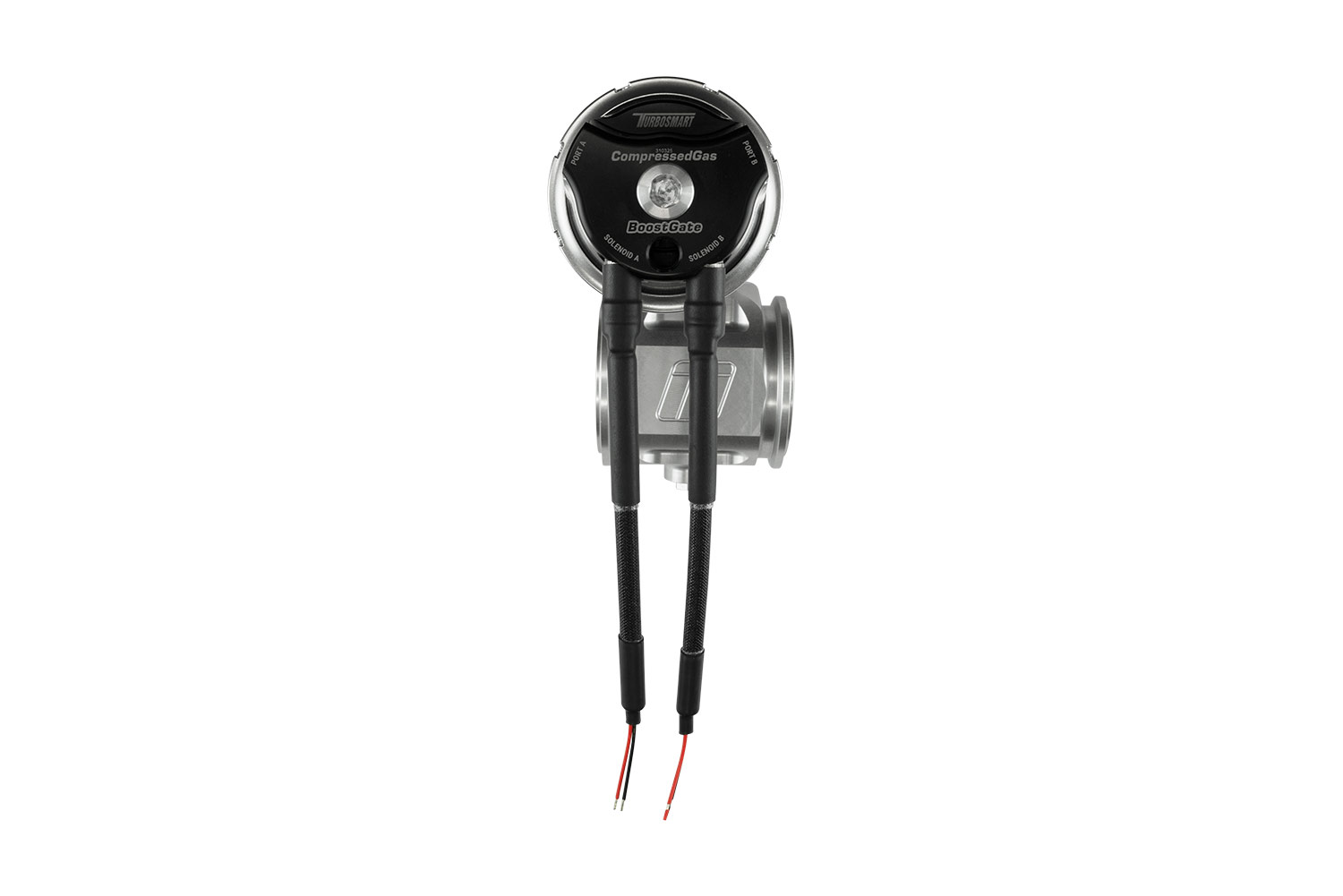

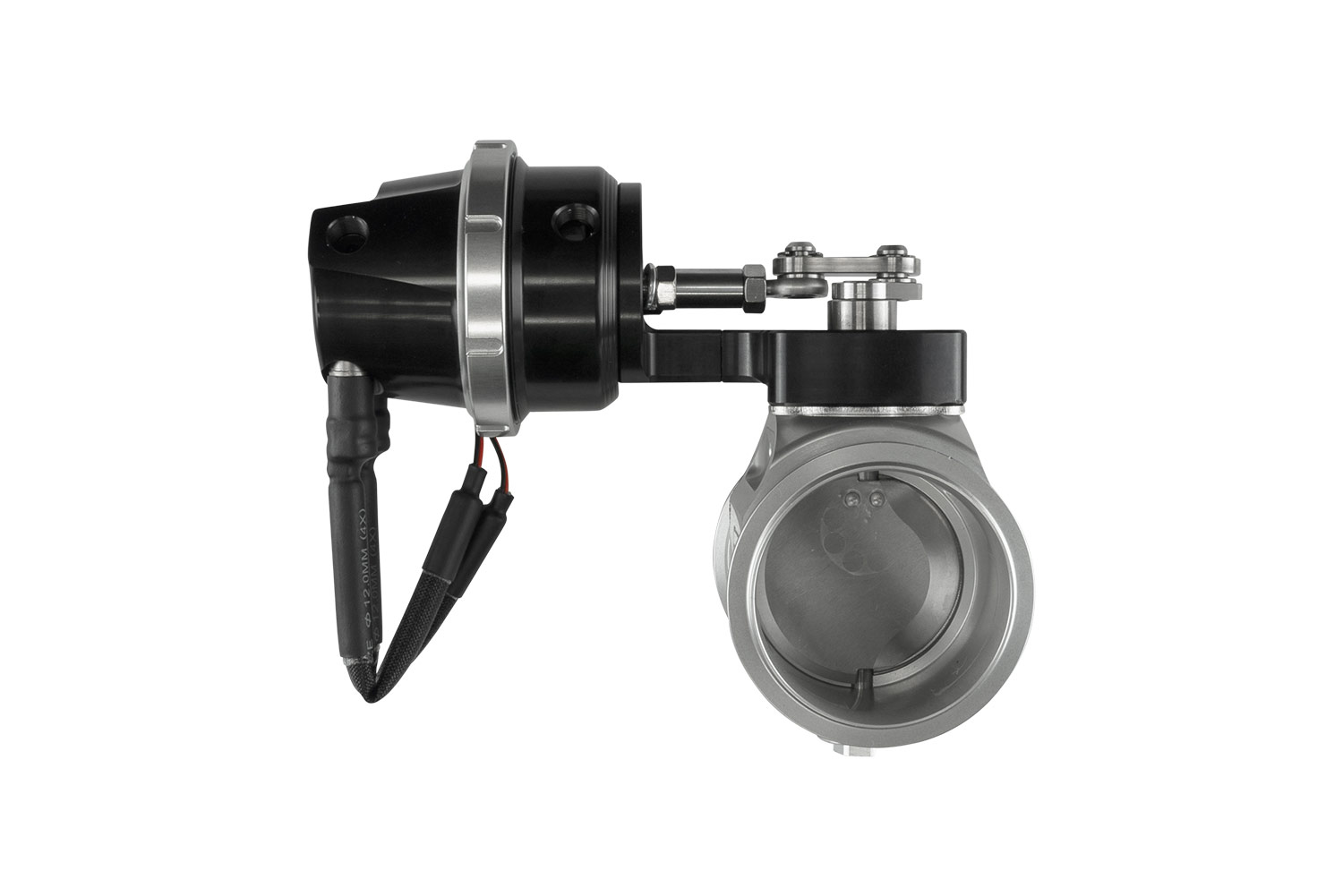

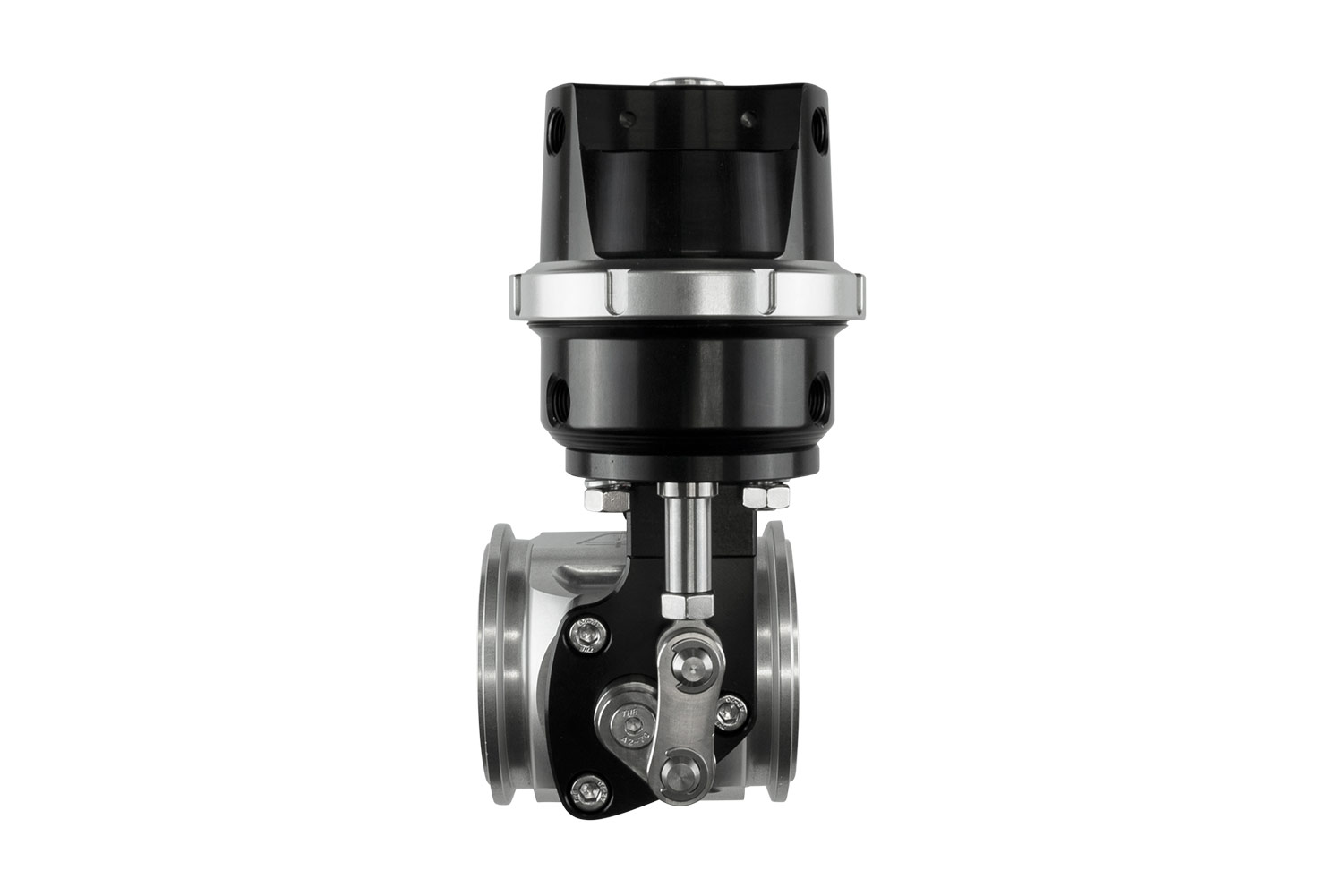

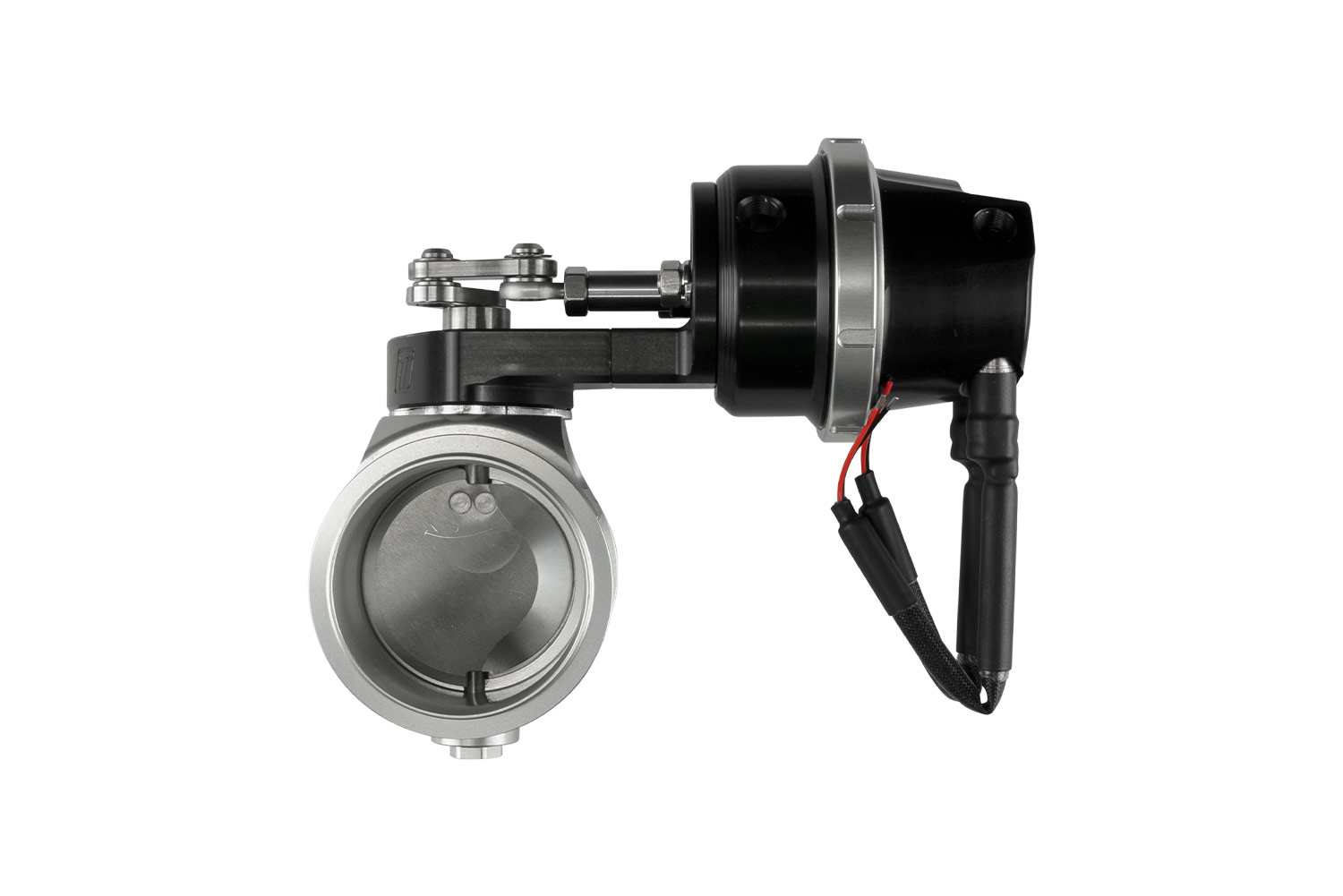

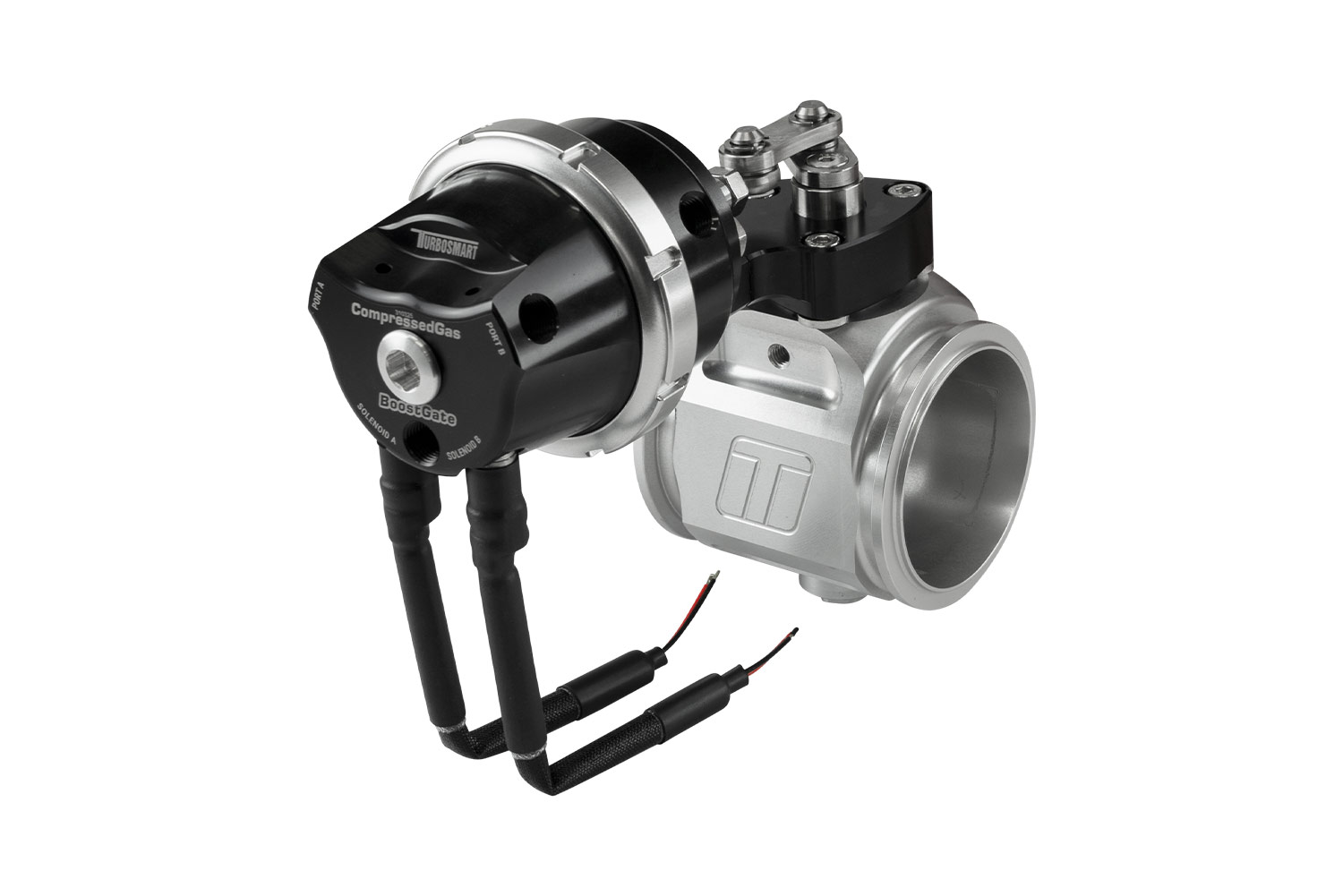

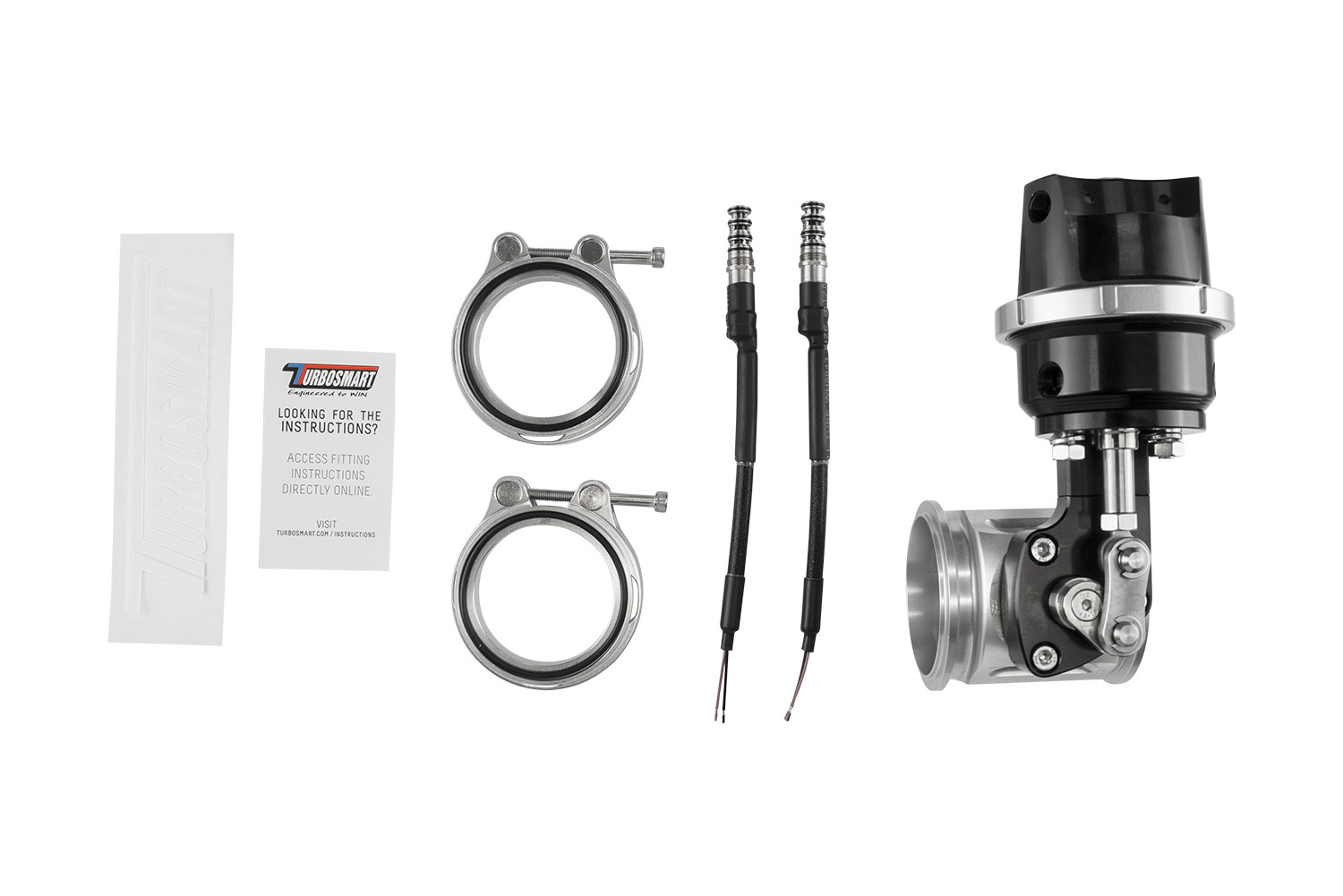

Turbosmart PBG50CG Boostgate Compressed Gas (Solenoid) 7PSI Black

Charge Air Control – Made Easy

The Compressed Gas BoostGate50 takes Turbosmart’s award winning electronic BoostGate and simplifies the control system with a diaphragm style actuator built specifically for use with Compressed Gas / CO2 boost controllers. In addition to a custom high pressure Nomex diaphragm the Compressed Gas BoostGate50 has integrated “fill and spill” solenoids for seamless control integration.

Unlike a traditional external wastegates, which bypass exhaust gas around the turbine housing to reduce turbocharger shaft speed and effectively, boost levels – Charge Air Control is a controlled bleed of the compressed air on the cold side of the turbocharger system (ie boost). Mounted to the charge pipe, the Compressed Gas BoostGate50 can be used to modulate boost pressure directly, rather than the indirect method of traditional hot side boost control.

Charge Air Control is specifically suited to applications like drag racing where turbocharger specifications have already been optimized and the turbine housing is not a limiting performance factor (ie engine pressure ratio’s below 1). Turbosmart BoostGate’s use a zero offset butterfly-styled valve that enables incredible resolution, enormous flow and the kind of boost control required to deliver the perfect pass, every time.

Equipped with Turbosmart’s proprietary control in cap technology to reduce system error and maximize response, the Compressed Gas BoostGate76 is Engineered to Win!

Features
Integrated Control In Cap Technology
Designed Specifically for CO2 Applications
50mm (1.97in) Butterfly style zero-offset valve
383.9 CFM / 10.87m3 per minute flow
Stainless steel (630) Butterfly and shaft
Billet Aluminium Main Body
360-degree mounting options on V-band
Clock-able actuator positions (3 x 120 Deg options)
