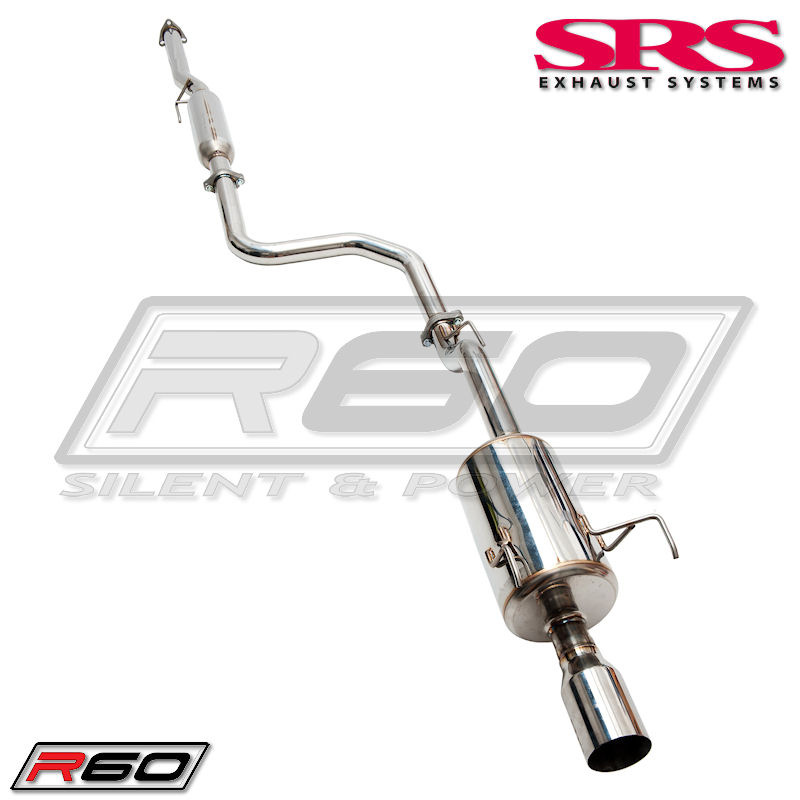

SRS R60 Catback Exhaust System TÜV – Honda Civic EG 2/4DR (CBS-CV9224D-R60)

Product Overview

The 1992–1995 Honda Civic (EG) coupe and sedan models are legendary tuning platforms, however, decades of heat, moisture, and restrictive original engineering have left most factory underbody plumbing heavily corroded and choked. The stock OEM exhaust constricts spent gasses via narrow, low-diameter piping, tight structural crush-bends, and restrictive internal baffle walls that strangle peak horsepower and stifle throttle pick-up.

The SRS R60 Catback Exhaust System TÜV – Honda Civic EG 2/4DR (CBS-CV9224D-R60) provides a premium, track-tested exhaust overhaul engineered for maximum fluid velocity without public road compromises. Available at JDMaster.net, this catback system is constructed entirely from high-grade, mirror-polished SUS304 stainless steel and features an extended mandrel-bent 60.5mm (2.38-inch) straight-through architecture. This system features specialized length scaling configured specifically to accommodate the extended wheelbase of the 2-door coupe and 4-door sedan profiles. Acoustically tuned with a specialized “Silent Performance” core, it suppresses fatiguing low-end cabin boom and highway drone, allowing it to carry a complete TÜV certification for worry-free street legality.

Key Features & Benefits

• Official TÜV Certification Legality: Fully tested and approved under European noise compliance standards, ensuring hassle-free road inspections and absolute legal peace of mind.

• High-Grade SUS304 Stainless Steel: Fabricated entirely from premium, aircraft-grade polished stainless steel to deliver superior defense against structural rust, road salt, and extreme thermal fatigue.

• Continuous 60.5mm Mandrel Bends: Smooth-wall mandrel bending preserves a uniform internal piping diameter throughout the mid-pipe, maximizing exhaust gas scavenging and eliminating power-robbing turbulence.

• Acoustically Tuned “Silent Performance” Muffler: Outfitted with high-density, multi-layer composite fibers that absorb harsh drone and high-frequency rasps, producing a deep, mature, sporty exhaust note under load.

• Extended 2/4-Door Chassis Scaled Fitment: Specifically extended mid-pipe and rear axle architecture tailored to line up precisely underneath the longer coupe and sedan chassis lines without hacking or extensions.

• Aggressive 100mm Polished Tailpipe Tip: Finishes with an elegant, single 100mm straight-cut polished tip that lines up perfectly inside the factory rear bumper cutout for a clean, timeless JDM aesthetic.

• Direct Bolt-On Layout: Precision CAD-milled flanges and factory-positioned mounting hooks ensure a seamless installation using original original chassis mount locations.

Technical Specifications

Applications

• Honda Civic Coupe (2-Door) 5th Gen (1992–1995 EJ1 / EJ2 Chassis with D-Series and B-Series Engines)

• Honda Civic Sedan (4-Door) 5th Gen (1992–1995 EG7 / EG8 / EG9 / EH9 Chassis with D-Series and B-Series Engines)

• Note: Does not fit 3-door hatchback models due to shorter rear floorpan length constraints.

The Mechanical Advantage: Unlocking Volumetric Flow Within Legal Limits

For lightweight naturally aspirated platforms like the Civic EG coupe or sedan, building usable horsepower requires maximizing volumetric efficiency. When you push your D or B-series engine into its upper powerband, the volume of high-temperature spent gas increases exponentially. The factory original equipment exhaust forces this fast-moving column through restrictive baffle plates and narrow tubes, which pushes a positive pressure wave back into the combustion chamber. This exhaust gas contamination dilutes the incoming fresh air-fuel charge, creating a severe bottleneck that hampers peak power and throttle response.

The SRS R60 Catback System corrects this performance barrier. By transitioning to a smooth 60.5mm straight-through corridor, it removes internal restrictions entirely. As exhaust pulses flow unimpeded through the mandrel bends, they create a powerful low-pressure vacuum behind them (scavenging effect) that actively pulls remaining exhaust out of the cylinders—drawing a cleaner, denser fuel mixture into the engine for the next combustion stroke.

To achieve official TÜV certification without sacrificing this high-velocity flow, SRS engineers utilized a high-density acoustic packing wrapped around a perforated inner core. This architecture absorbs low-RPM boominess and high-frequency rasp, providing a daily-driveable cabin experience while delivering an authoritative tone when you hit the gas.

Professional Lift Installation & Sealing at JDMaster

Get it Fitted by the Specialists: Schedule an appointment at our advanced JDMaster.net workshop. Our factory-trained performance technicians will safely lift your EG, cleanly extract the weathered factory plumbing, precision-torque your new SUS304 SRS flanges with fresh gaskets, and guarantee ideal clearance under load variables.
