Nuke Performance Fuel Surge Tank Kit for internal fuel pumps

Nuke Performance 3.0 liter Fuel Surge Tank is market leading with top quality combined with outstanding performance.

These kits combines the top quality Surge Tank with some of the most common internal fuel pumps on the market. Choose between single or dual fuel pump setup and between listed fuel pumps.

The 1G Fuel Surge Tank Kits is available for listed internal fuel pumps:

• 1 – 2 x Bosch 040

• 1 – 2 x Deatschwerks 200 / 300 / 400

• 1 – 2 x Walbro GSS341 / GST450
• Designed and manufactured to handle extreme amounts of power with the same hallmark as all of Nuke Performance products.

With our Fuel Surge Tank, you minimize the risk of fuel starvation when running at low fuel level, that the system not cope with the extremely hard driving such as drifting, drag racing and track days where you can exceed 2g, which could result in fuel loss.

The FST works as a buffer so the fuel pumps are always supplied with fuel for high outputs.

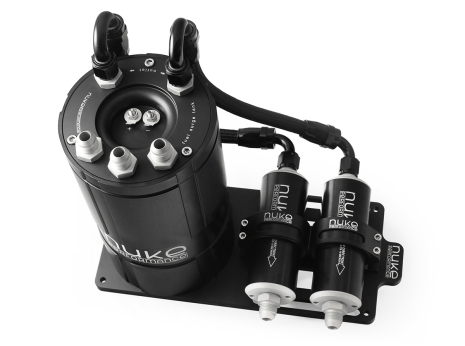

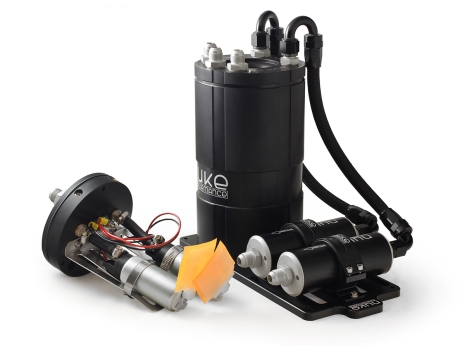

Included in the Fuel Surge Tank kit for internal fuel pumps:
Fuel Surge Tank for internal fuel pumps
Billet Mounting Plate
Fragola Braided fuel hoses with Nuke Performance Hose Ends
Nuke Performance Universal Bracket with “Slim filter” inserts
Nuke Slim Fuel Filters 10 micron
* No fuel pumps included

Our Fuel Surge Tank is available in several different setups, each one designed to perform to the maximum, either with internal fuel pumps or external fuel pumps.

Use to advantage one of our kits which we adapted for some of the most widely used fuel pumps on the market, fuel pumps that match the high quality we seek.
With these kits the fuel is delivered with minimum flow loss or starvation.

Delivered with 5x 3/4 AN8 fittings for all the top cover connections and 1x 3/4 plug if you choose to use it for a single fuel pump. 3/4 AN6-AN10 is optional and are sold separately but AN-8 is what is used within this kits.

Designed to stand up to the destructive properties of alcohol fuels, including methanol and ethanol.





Version	For single fuel pump, For dual fuel pump
Fuel pump	Deatschwerks 200 / 300 / 400, Walbro GSS341 / GST450, Bosch 040

Technical information : • CNC manufactured from aluminium alloy 6063. • Stainless steel bolts for long lasting. • Holds a volume of approximately 3 liters. • Delivered with 5x 3/4 AN8 and 1x 3/4 plug fittings. • 3/4 UNF Ports, available to AN-6, AN-8 or AN-10 line. • Fuel pumps are not included • Laserengraved. Measurements : Height : 270 mm Length : 343 mm Depth : 148 mm Weight : 4938 g * All measurements excluding the supplied fittings.
