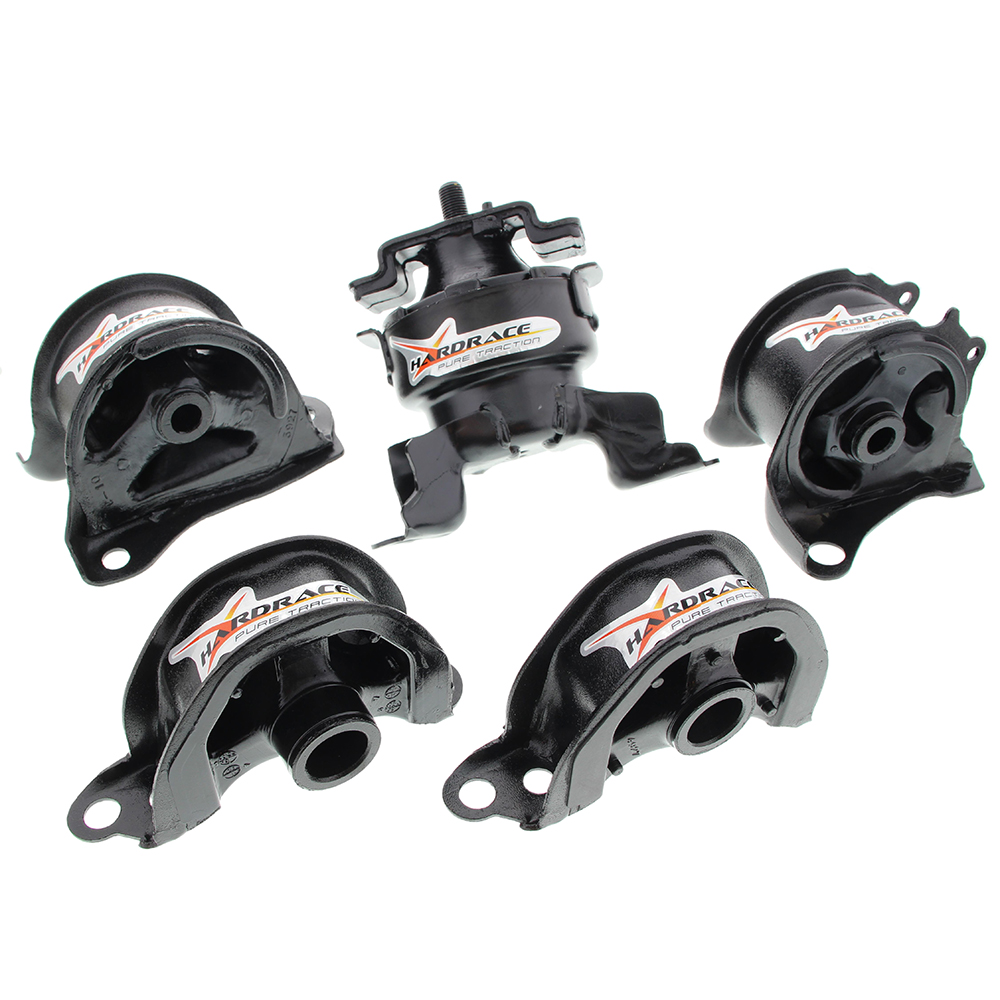

Hardrace Harden Engine Mount – Honda Civic EK (5827)

Product Overview

Sixth-generation Honda Civic platforms are highly celebrated for their chassis balance and tuning potential, but aging factory fluid-filled or soft rubber mounts hold back their performance capacity. Over decades of high-RPM shifts, severe daily street driving, and track duty, original equipment brackets sag, fatigue, and tear. This mechanical failure permits the entire engine block to lift and rock violently under acceleration, leading to delayed throttle response, imprecise gear engagement, and aggressive frontend wheel hop.

The Hardrace Harden Engine Mount – Honda Civic EK (5827) kit is a complete, structural 5-piece powertrain stabilization solution engineered to secure your engine firmly in place. Available at JDMaster.net, this heavy-duty street/track upgrade trades your worn, hyper-compliant factory anchors for solid, high-durometer vulcanized hardened rubber mounts. By capturing the powertrain along its designated mechanical centerline, this kit delivers crisp throttle feedback and an immediate forward tire bite without inducing the brutal, interior-rattling harshness common with track-only solid polyurethane or aluminum mounts.

Key Features & Benefits

• Arrests Rotational Powertrain Twist: Heavily restrains aggressive engine lurch along the horizontal axis, transforming rotational energy into instantaneous front wheel acceleration.

• Signature High-Density Harden Rubber: Formulated from a non-porous, anti-crack performance elastomeric compound that delivers up to 150% greater tensile strength than standard original equipment.

• Comprehensive 5-Piece Complete Kit: Rebuilds your entire engine bay structure by replacing all three primary load-bearing mounts (driver-side left, transmission-side right, rear firewall) plus both front lower torque damper mounts.

• Protects Shifter Alignment Lines: Keeps the transmission casing completely stable relative to the car body, preventing cable and mechanical linkages from binding to eliminate missed gears at high RPM.

• Engineered Balance for Street Performance: Significantly stiffer than standard original rubber to handle aggressive track sessions, yet compliant enough to absorb high-frequency engine harmonics for an enjoyable cabin experience.

• Direct Bolt-On OEM Integration: Molded to precise factory CAD-CAM dimensional measurements to slip directly into standard subframe locations using factory mounting hardware.

Technical Specifications

Feature	Specification
Brand	Hardrace
Part Number / SKU	5827
Product Type	Heavy-Duty Reinforced Powertrain Engine Mount Set
Material Compound	High-Durometer Solid Performance Harden Rubber & Carbon Steel
Transmission Compatibility	Manual Transmission (MT) Models Only
Quantity in Set	5 Pieces / Full Structural Kit (3 Primary Mounts + 2 Front Torque Mounts)
Chassis Location	Powertrain Structural Castings to Subframe & Engine Bay Frame Rails

Applications

This specific Part Number 5827 reinforced 5-piece structural mount kit is a precise, drop-in engineering fit for the following manual sixth-generation Honda platforms:

Chassis Fitment

• Honda Civic 6th Gen (1996–2000 EK3 / EK4 / EJ6 / EJ7 / EJ8 / EJ9 / EM1 Chassis — Fits Coupe, Hatchback, and Sedan variants)

Engine Application Note

Designed to bolt natively onto standard manual D-Series (SOHC) or B-Series (DOHC VTEC) engine architectures (such as the D16Y7, D16Y8, B16A2, or JDM B18C swaps) utilizing the factory EK subframe configuration.

(Note: Not compatible with custom K-Series or H-Series engine swaps, which require specialized relocation swap brackets).

The Mechanical Advantage: Eradicating Front Axle Wheel Hop on the EK Chassis

In a transverse front-wheel-drive layout like the Civic EK, the motor naturally rotates backward when you apply the throttle and forward when you lift off the gas or brake. Factory engine mounts use incredibly soft rubber mixed with wide internal air cavities to isolate the cabin from standard engine idling vibrations. However, when you add performance components or attempt an aggressive standing launch, this soft insulation creates a massive buffer of structural compliance.

The motor tilts back sharply before transferring torque down to the front axles. This abrupt shift in weight profile unloads the front tires, inducing a violent, repeating loop of traction loss and structural chatter known as wheel hop. Wheel hop doesn’t just destroy your 60-foot times; it places extreme shock stress on your CV axles, differential gears, and exhaust flex pipes.

The Hardrace 5827 5-piece system completely resolves this engineering bottleneck. By packing high-density, solid vulcanized rubber into the heavy-duty structural mount casings, it eliminates the large air gaps entirely. When you hit the gas, the torque forces are driven straight through the axles and into the asphalt. Power delivery becomes instantaneous, tracking out of tight corners is completely predictable, and your vehicle gains a tight, unified structural feeling under heavy driving load variables.

Professional Engine Support Lift Installation at JDMaster

Get it Fitted by the Specialists: Replacing an entire 5-piece engine mount set on an EK chassis is a heavy mechanical undertaking. It requires securely supporting the powertrain weight from beneath or suspending it via a specialized engine hoist while unbolting major structural subframe connections—particularly the deeply recessed rear firewall mount. High-torque chassis fasteners are highly prone to seizing over time, and improper component alignment during reassembly can cause drivetrain binding or extreme cabin resonance.

Skip the safety risks and schedule a dedicated installation lift slot at the JDMaster.net workshop. Our factory-trained automotive technicians will safely suspend your engine, inspect your chassis mounting brackets for physical metal fatigue, drop in the new Hardrace units, and torque all primary structural hardware to exact factory specifications under real loaded weight distribution.

---

Warranty

The warranty on Hardrace products depends on the type of product, with a minimum warranty period of 2 years. This warranty does not cover damage caused by a car crash, improper use, negligence or normal wear and tear.

Weight	4.114 kg
Dimensions	21.2 × 20.9 × 13.3 cm
pa_fitments	EJ6/7/8/9, EM1, Honda Civic 6th 1996-2000 EK3/4/5/9
