Hardrace Front Quick Disconnect Sway Bar – Suzuki Jimny

Hardrace Front Quick Disconnect Sway Bar – Suzuki Jimny 4th Gen (Q0823)

Product Overview

The 4th-generation Suzuki Jimny (JB64/JB74) is a formidable solid-axle off-roader, but its factory anti-roll system presents a constant mechanical compromise. Leaving the front sway bar connected on the trail severely limits your front axle’s vertical articulation, forcing wheels to lift over deep ruts and reducing vital terrain traction. Conversely, completely removing the sway bar causes excessive, dangerous body roll during high-speed street commutes and sudden lane changes.

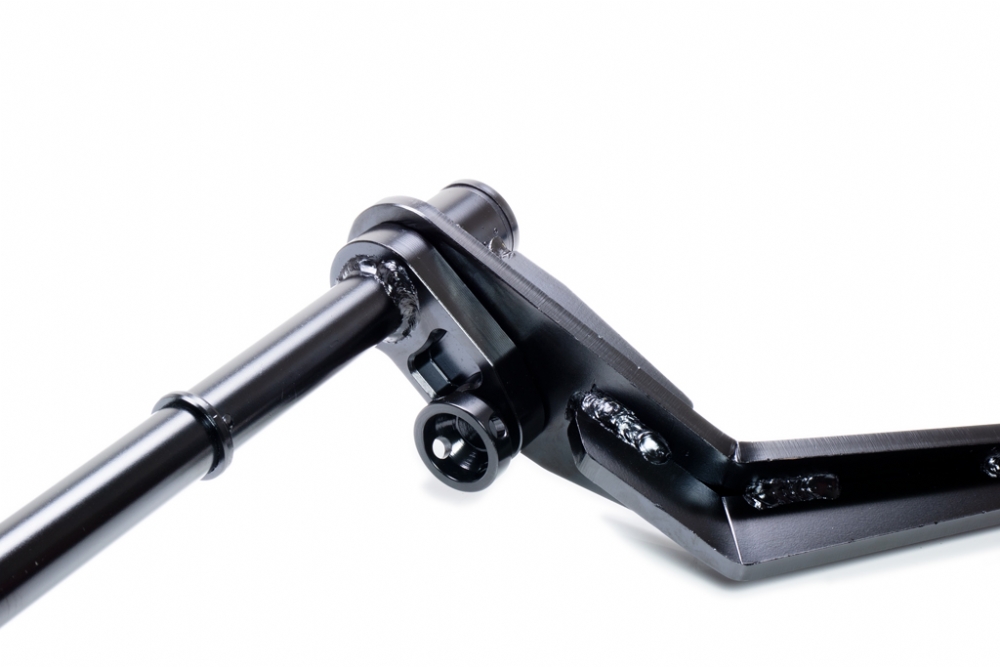

The Hardrace Front Quick Disconnect Sway Bar (Q0823) provides the ultimate dual-purpose solution for your Jimny. Available at JDMaster.net, this innovative 7-piece premium kit utilizes a heavy-duty lock pin mechanism that allows you to switch from tightly controlled street manners to uninhibited trail articulation in less than a minute. By pulling a simple retention pin on each end link, you can manually disconnect the sway bar at the staging lanes to let your solid axle flex to its maximum potential, then pin it back into place before driving home on the highway.

Key Features & Benefits

• Tool-Free Lock Pin Mechanism: Engineered with heavy-duty pull pins that allow you to engage or isolate the anti-roll system in seconds without crawling underneath with hand tools.

• 36% Stiffer Than OEM Steel Casing: The upgraded sway bar core is cold-formed from high-tensile steel, providing a 36% stiffness increase over the original factory bar to significantly flat-line body roll on lifted setups.

• Greasable Self-Lubricated Bearings: Equipped with specialized pivot housings featuring built-in grease nipples (zerk fittings) to ensure smooth, silent, and friction-free link movement over years of muddy track exposure.

• Advanced Electrophoretic Deposition (ED) Shielding: Coated in Hardrace’s signature industrial ED paint treatment to prevent structural rust and surface degradation from road salt, mud, and water crossings.

• Maximum Off-Road Articulation: When pulled open, the links allow independent front wheel travel, keeping your tires pressed hard against the ground for maximum grip over technical rock steps or deep mud ruts.

• Complete 7-Piece Hardware Package: Comes supplied with the uprated front sway bar, quick-disconnect links, mounting brackets, upgraded bushings, and all necessary structural installation hardware.

Technical Specifications

Applications

Suzuki Jimny 4th Generation (2018–Present)

• Suzuki Jimny Sierra (JB74W) — 1.5L K15B Naturally Aspirated Petrol (Global wide-body variant)

• Suzuki Jimny Kei-Car (JB64W) — 660cc R06A Turbocharged Petrol (JDM narrow-body variant)

• Suzuki Jimny Commercial / LCV — 2-Seater Light Commercial Models

• Suzuki Jimny 5-Door (JC74W) — Extended-wheelbase multi-door platforms

The Mechanical Advantage: Wheel Articulation vs. On-Road Control

On a solid-axle vehicle like the Suzuki Jimny, the driver’s side and passenger side wheels are mechanically linked. When the passenger side wheel encounters a rock and stuffs upward into the fender, a standard sway bar acts as a torsional spring, physically forcing the driver’s side wheel upward as well. On the trail, this lift reduces the downward force on the opposite tire, leading to wheel spin, lost traction, and a jagged, tippy ride.

The Hardrace Q0823 system instantly cures this mechanical bottleneck. Disconnecting the pins breaks the physical connection between the axle and the chassis frame, allowing each side of the front axle to move completely independently. Your tires drop deep into ruts to find solid ground while your vehicle’s cabin stays level and balanced. Once you return to asphalt, pinning the assembly closed restores the sway bar’s structural rigidity, eliminating the wallowing sway and loose steering feel that plagues unequipped off-roaders.

Professional Workshop Fitting & Safety Advice

Operational & Alignment Warning: The quick-disconnect pull pins must only be extracted or inserted while the vehicle is parked on flat, level ground. Attempting to pull or install the lock pins while the vehicle is resting on an incline or articulation ramp can cause the sway bar to release under intense spring tension, posing a risk of personal injury or component damage.

Because this kit replaces the original anti-roll bar with an uprated 36% stiffer layout, your front-end steering geometry remains stable, but a professional check is recommended if paired with an aftermarket suspension lift over 2 inches (50mm). For flawless tracking and optimal system setup, book an installation appointment at our fully equipped JDMaster.net workshop.

Warranty

The warranty on Hardrace products depends on the type of product, with a minimum warranty period of 2 years. This warranty does not cover damage caused by a car crash, improper use, negligence or normal wear and tear.
