Hardrace Adjustable Front Lower Control Arms – Subaru BRZ ZD8 (Q1045)

Product Overview

The second-generation Subaru BRZ (ZD8) is widely celebrated for its pure rear-wheel-drive dynamics, ultra-low center of gravity, and highly communicative MacPherson strut front suspension layout. However, when you lower the ZD8 chassis on performance lowering springs or coilovers, the factory control arm geometry gets heavily compromised. The arms point upward instead of remaining parallel to the ground, shifting the roll center, reducing the tire contact patch under load, and introducing unwanted bump-steer traits. Furthermore, the non-adjustable factory front arms offer no direct way to dial in custom track width or aggressive negative camber without relying entirely on weak top-hat eccentric bolts.

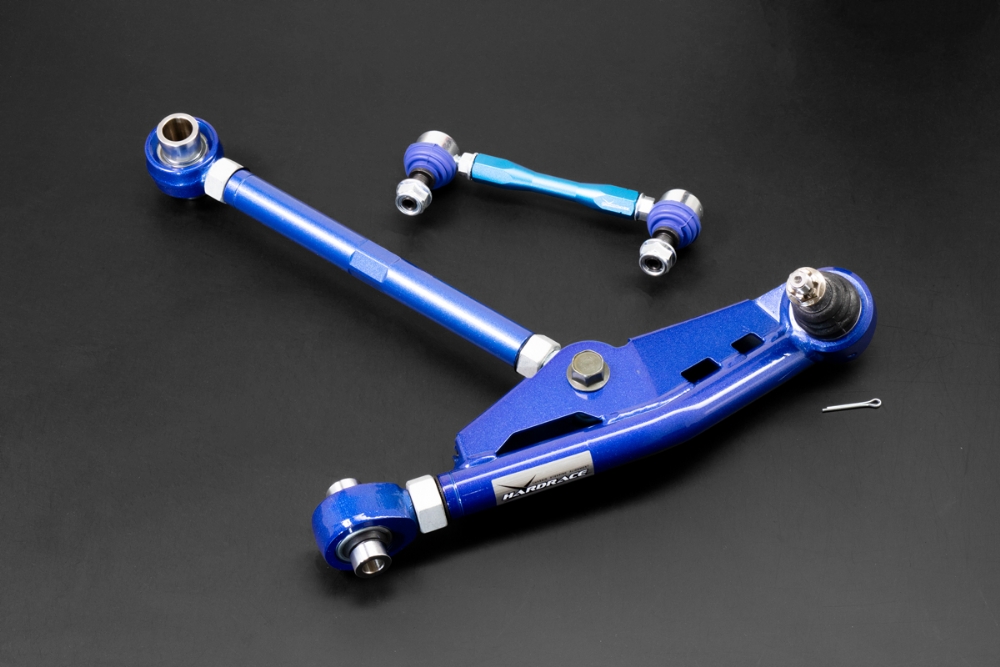

The Hardrace Adjustable Front Lower Arm Kit – Subaru BRZ ZD8 (Q1045) is an elite-tier, motorsport-grade suspension overhaul engineered to fix these geometry errors while eliminating rubber compliance entirely. Available at JDMaster.net, this comprehensive 6-piece master set features fully adjustable, tubular steel alloy control arms equipped with premium spherical pillow-ball joints and built-in roll center adjusters. By replacing your flexible, non-adjustable factory stamped-steel arms with this rigid, high-precision assembly, you can fine-tune your track width, dial in precise front camber settings, and eliminate dynamic alignment deflection entirely under intense track or drift conditions.

Key Features & Benefits

• Turnbuckle Camber & Track Adjustability: Features a robust, on-car adjustable turnbuckle mechanism that allows you to easily expand or contract the front track width and dial in precise negative camber angles for maximum mid-corner front grip.

• Integrated Roll Center Correctors: Pre-assembled with extended lower ball joints that reposition the control arm angle on lowered vehicles. This effectively restores the ideal roll center geometry and significantly reduces body roll during hard transitions.

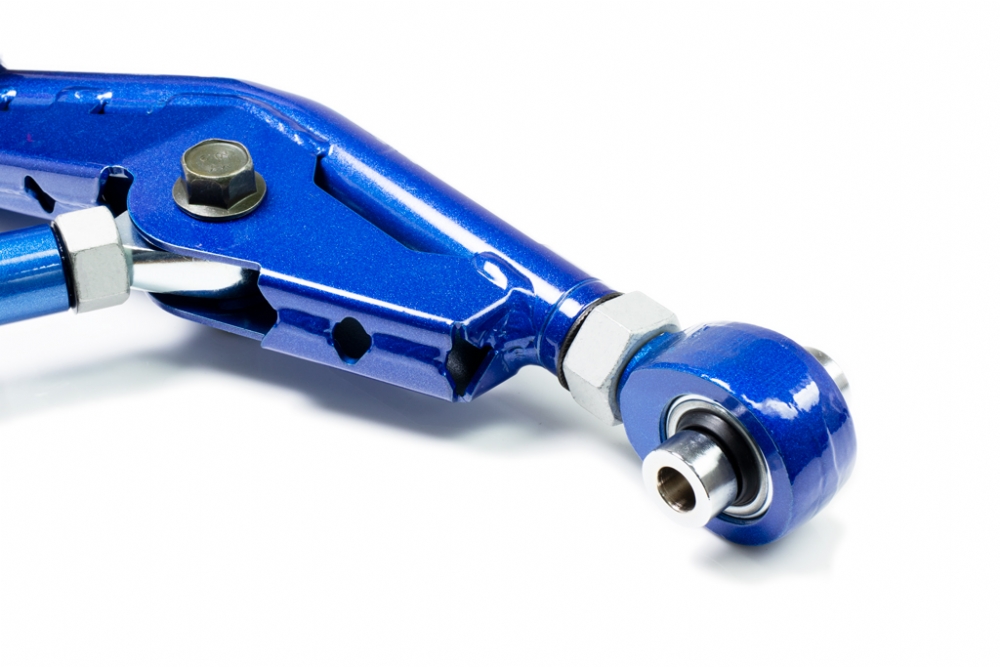

• Motorsport Spherical Pillow Balls: Replaces soft factory rubber pivots with high-strength, solid metal spherical joints protected by rubber dust boots. This guarantees zero flex under load, providing instantaneous steering response and pure mechanical feedback.

• Complete 6-Piece Assembly: Supplied as a comprehensive matching pair including heavy-duty adjustable arms, extended ball joints, and specialized adjustable sway bar end links to maintain proper anti-roll bar pre-load.

• High-Tensile Tubular Steel Construction: Fabricated from premium, thick-walled steel alloy tubes to offer superior structural strength against heavy curbs, sticky track tires, and aggressive drifting loads.

• Anti-Corrosion Coating: Treated with Hardrace’s iconic high-durability blue paint and anti-rust plating to ensure maximum longevity against harsh weather, road grime, and track debris.

Technical Specifications

Applications

• Subaru BRZ 2nd Gen (2021–Present ZD8 Chassis — Fits 2.4L FA24 models including Premium, Limited, and tS editions)

The Mechanical Advantage: Restoring Roll Center & Eliminating Lateral Deflection

When a MacPherson strut vehicle like the BRZ ZD8 is lowered on coilovers, the outer pivot point of the front lower control arm (at the wheel hub) moves upward relative to the inner pivot point (at the subframe). This geometric shift forces the control arm to angle upward, pushing the vehicle’s roll center far below the asphalt.

The greater the distance between the center of gravity and the roll center, the larger the “lever arm” acting on the car during a turn. This results in excessive body roll, sluggish turn-in response, and poor tire utilization.

The Hardrace Q1045 design directly corrects this flaw using its integrated roll center adjusters. The extended ball joint stems push the outer control arm down, restoring the arm to its optimal horizontal orientation. This physically brings the roll center back up closer to the center of gravity, naturally reducing body roll without needing excessively stiff, ride-ruining sway bars or spring rates.

Additionally, because the inner pivots utilize solid spherical pillow-ball joints instead of flexible rubber or polyurethane, the arm cannot shift or deflect laterally when subjected to heavy cornering loads. When you turn into a high-speed corner, your tire contact patch remains perfectly flat against the ground, ensuring maximum lateral grip and delivering immediate, telepathic steering feedback to the driver.

Professional Lift Installation & Alignment at JDMaster

Professional Fitting Note: Ensure your performance vehicle is configured to its absolute peak potential by booking an appointment at our JDMaster.net workshop. Our trained team handles full chassis tuning, track setups, and precise alignment calibrations.

Warranty

The warranty on Hardrace products depends on the type of product, with a minimum warranty period of 2 years. This warranty does not cover damage caused by a car crash, improper use, negligence or normal wear and tear.
