ACUITY BSPT TO NPT OIL CUBE

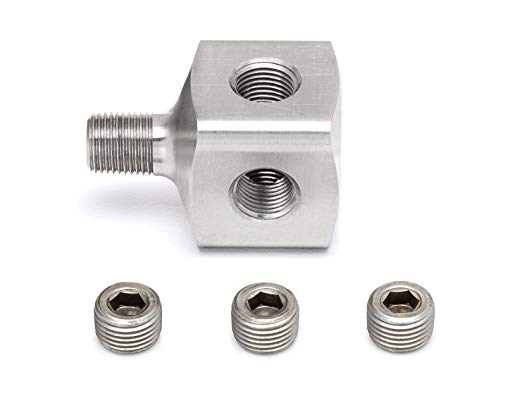

ACUITY Oil Cube. The Oil Cube is made from stainless steel and is designed to provide up to (4) 1/8-NPT female ports.

These ports can be used for oil pressure sensors, oil pressure gauges, turbo oil feeds (-3AN or smaller feed lines only).
The Oil Cube features a 1/8 BSPT male port on one end and a 1/8 BSPT female port on the other.
Simply remove your OEM 1/8 BSPT oil pressure switch or sensor, screw the Oil Cube in, and screw the oil pressure switch into the Oil Cube.
Always remember to use ptfe tape or liquid thread sealant on all tapered threads.
Remember to always read the Spec Sheet and Install Guide before installing your Oil Cube – see ACUITY website.

FEATURES –

Includes

(3) 302 Stainless Steel 1/8-NPT Plugs

– 4) 1/8-NPT ports around the periphery – Compatible with oil lines up to -3 AN – Male and female BSPT ports allow easy placement between 1/8-BSPT oil switch and engine block
